El Motaheda for lighting technology industrial plant.
Assigned construction for new plant infrastructure ,Civil work and Steel structure work to AMC company based on the integrated tender with total amounts 3481600 LE, with Grand Schedule 58 week (14 Month)
General description for the site :
location: Alexandria Desert Road Industrial Aria Road 52 Piece 16
the assigned building area was 810 m2 form total area 1350 m2
BuildingDescription
the plant consists of three building
operation building
840 m2 with height 12 m Divided into two zones
the lines zone from steel structure three story building &the stores zones the row material store as one store Multi bay steel structure building and the finish product as a one store Multi bay steel structure building.

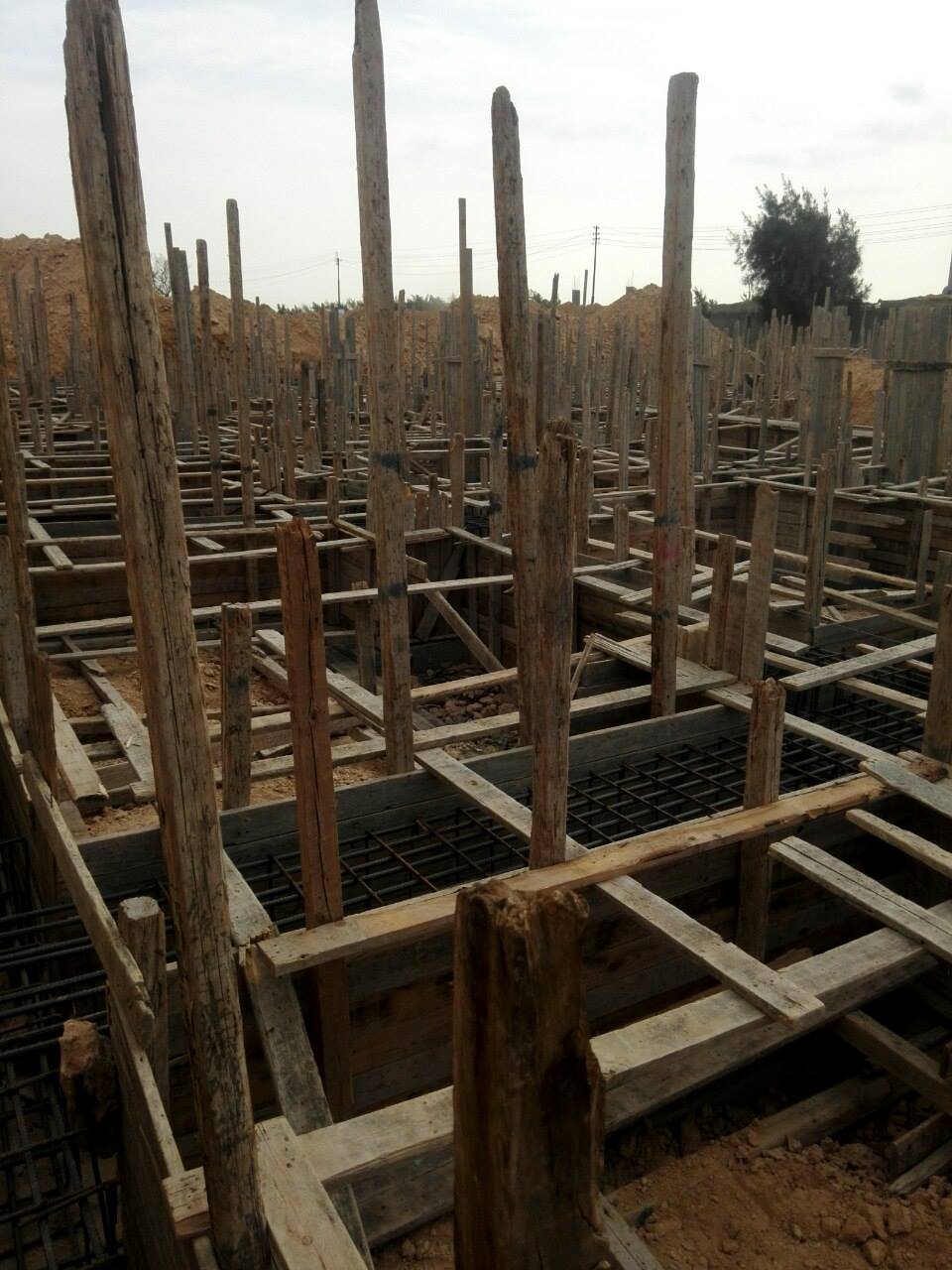

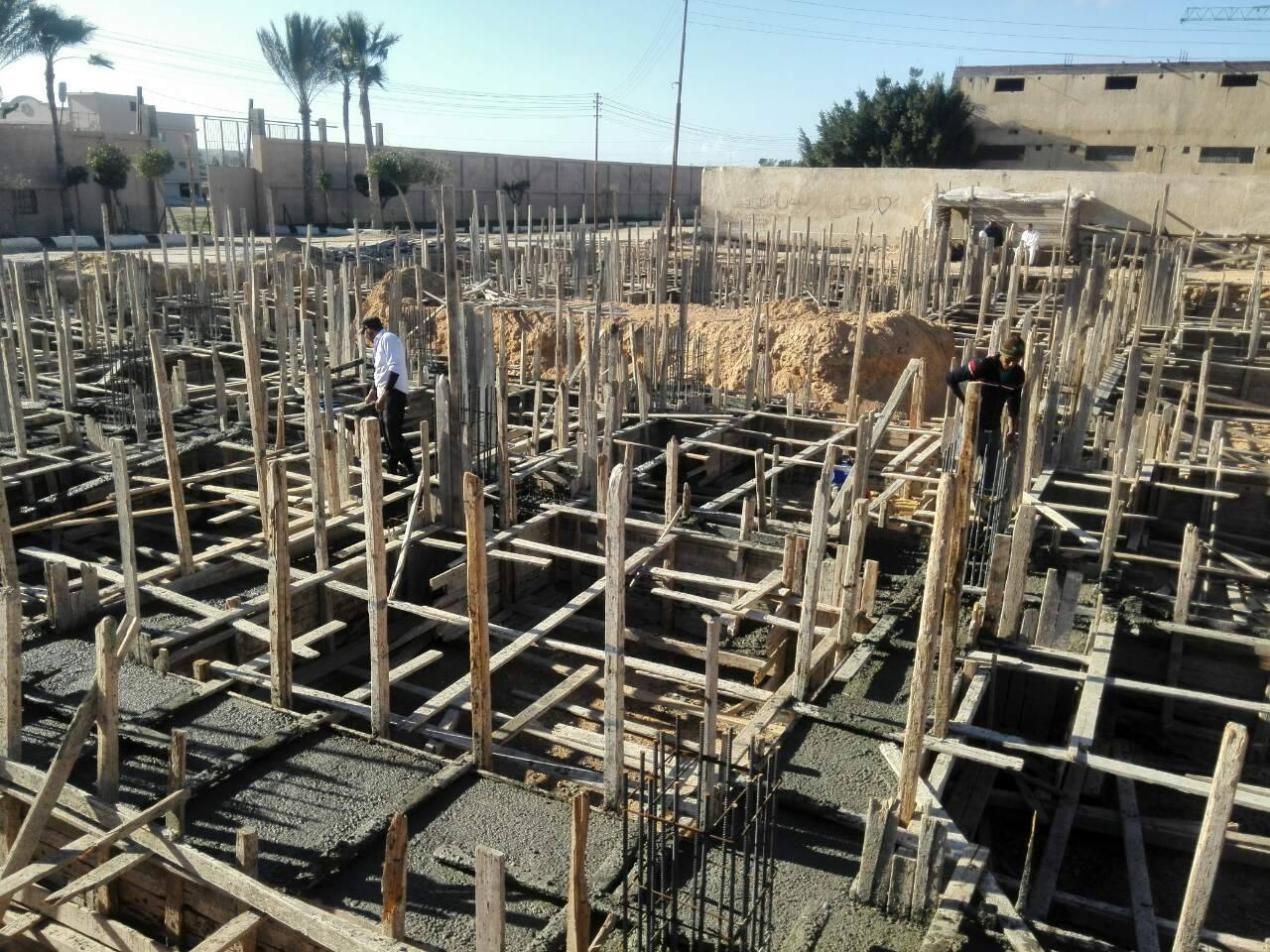

All of the steel zones Lean on isolated reinforced concrete foundation at level – 1.40 over replacement soil with depth 1.5 m
Utility building
A two story reinforced concrete building with total area 360 m with height 7.20 m for the power house , the Compressors house and water pump station for city water and jokey pump for firefighting.
The he first story for the Compressors house and pumps stations and the second for the power house.

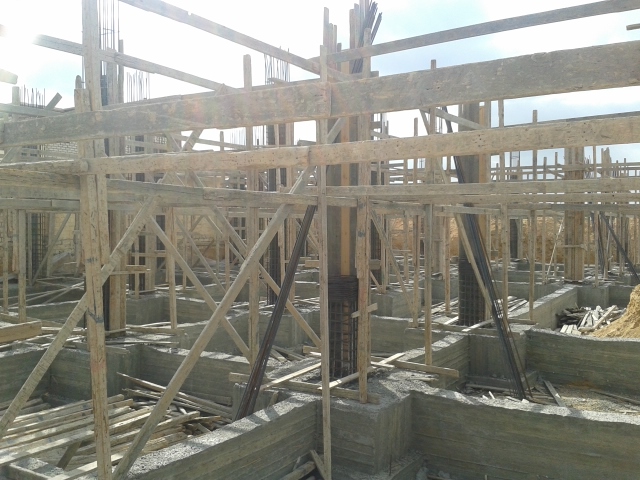

and the concrete super structure lean on reinforced concrete foundation mixed from isolated and combine footing at level -1.40 over replacement soil with depth 1.5 m.
Admin bulging
A three story reinforced concrete building with total area 400 m with height 9 m
The he first story for reception , Mosque and the spare part and stuff store
the second for labors lockers and the Canteen the third floor for the management offices.
and the concrete super structure lean on reinforced concrete foundation mixed from isolated and combine footing at level -1.40 over replacement soil with depth 1.5 m.
Misc.
Reinforced concrete roads, two movable gates, gate house.
